Examining the Ears

The ear is the primary organ of hearing. It is divided into three parts: the external, middle, and inner ear.

External Ear

The external, or outer, ear is composed of two parts, the auricle and the external auditory canal. The auricle, or pinna, is a cartilaginous structure located on each side of the head. The auricle collects sound waves from the environment, which are then conducted by the external auditory canal to the eardrum. The lining of the auditory canal contains glands that secrete a waxy substance called cerumen. The cerumen aids in protecting the eardrum against foreign bodies and microorganisms.

The eardrum, or tympanic membrane, is an oval sheet of fibrous epithelial tissue, 10 mm by 9 mm in size, which stretches across the inner end of the external auditory canal and separates the outer and middle ear. The sound waves cause the eardrum to vibrate. This vibration transfers the sounds from the external environment to the auditory ossicles.

Middle Ear

The middle ear is a cavity in the temporal bone, lined with epithelium. It contains three auditory ossicles-the malleus (hammer), the incus (anvil), and the stapes (stirrup)-which transmit vibrations from the tympanic membrane to the fluid in the inner ear. The malleus is attached to the inner surface of the eardrum and connects with the incus, which in turn connects with the stapes. The base of the stapes is attached to the oval window (fenestra ovalis), the membrane-covered opening of the inner ear. These tiny bones link together to span the middle ear. They are suspended from its bony wall by ligaments and provide the mechanical means for transmission of sound vibrations to the inner ear.

The eustachian tube connects the middle ear with the pharynx. It is lined with a mucous membrane and is about 36 mm long. Its function is to equalize internal and external air pressure. For example, while riding an elevator in a tall building, you may experience a feeling of pressure in the ear. This is usually relieved by swallowing, which opens the eustachian tube and allows the pressurized air to escape and equalize with the area of lower pressure. Divers who ascend too fast to allow pressure to adjust may experience rupture of their eardrums. The eustachian tube can also be a pathway for infection of the middle ear.

Inner Ear

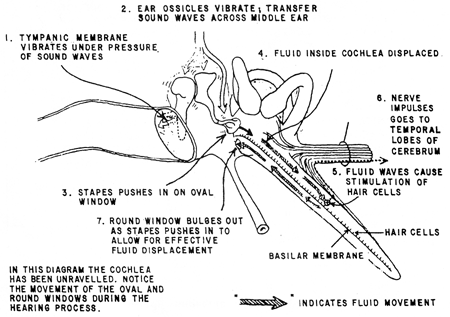

The inner ear is filled with a fluid called endolymph. Sound vibrations that cause the stapes to move against the oval window create internal ripples that run through the endolymph. These pressurized ripples move to the cochlea, a small snail-shaped structure housing the organ of Corti, the hearing organ. The cells protruding from the organ of Corti are stimulated by the ripples to convert these mechanical vibrations into nerve impulses, which are relayed through the cochlear (8th cranial) nerve to the auditory area of the cortex in the temporal lobe of the brain. Here they are interpreted as the sounds we hear.

Other structures of the inner ear are the three semicircular canals, situated perpendicular to each other. Movement of the endolymph within the canals, caused by general body movements, stimulates nerve endings, which report these changes in body position to the brain, which in turn uses the information to maintain equilibrium.

The round window (fenestra rotunda) is another membranecovered opening of the inner ear. It contracts the middle ear and flexes to accommodate the inner ear ripples caused by the stapes.

ear



Tragus Press


Auricle pull


Cerumen Impaction

Examination of the Ear:

Hearing:

  • Whisper a word (like baseball) about one foot away from the ear.

  • If the patient can’t hear the word, he has at least a 30% hearing loss.

External ear (auricle or pinna)

  • Inspect each ear and surrounding tissue for deformity, lumps or skin lesions.

  • If ear pain, discharge or inflammation is present, move the auricle up and down and press the tragus.

  • Movement of these structures is painful in acute otitis externa, but not in otitis media.

Ear Canal

  • When using the otoscope, grip the auricle firmly while pulling upward, back and slightly out.

  • Using the largest speculum that fits, insert it into the ear, holding the otoscope braced against the patient’s head.

  • Identify any discharge or foreign bodies, redness or swelling. Cerumen may obscure your view and need removal prior to evaluation of the eardrum.

  • In acute otitis externa, the canal is often swollen, narrowed, moist, pale, tender, and filled with debris.

  • Inspect the ear drum for color and contour. In acute otitis media, the eardrum is red and bulging. Is the eardrum mobile with valsalva or pneumatic attachment?

Drum (Tympanic Membrane or TM)

  • Locate Landmarks: Landmarks are obscured with otitis media and acute perforation.

  • Umbo — central bulge where the malleus attaches to the drum.

  • Light reflex — a line of light from the umbo pointing forward and down.

  • Inspect for perforations; the normal drum is translucent, pearly gray color.

  • Handle and short process of the malleus — superior to umbo.

Source: Operational Medicine 2001,  Health Care in Military Settings, NAVMED P-5139, May 1, 2001, Bureau of Medicine and Surgery, Department of the Navy, 2300 E Street NW, Washington, D.C., 20372-5300
